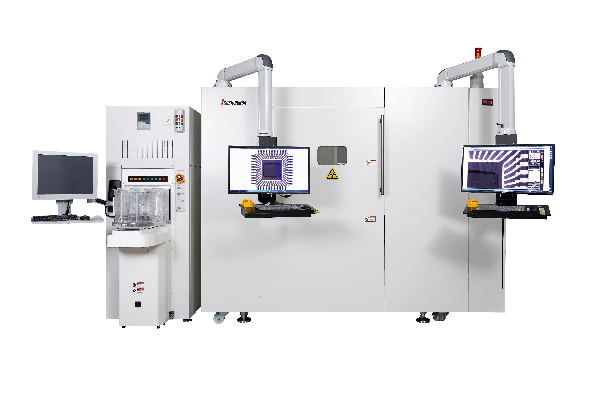

XSCAN-9860A
세계 최초이자 2D & 3D Auto X-RAY In-line 검사 납품 실적을 보유하고 있으며, 당사 프로그램을 통해 VOID, 충진상태 등 검사 및 분석 가능

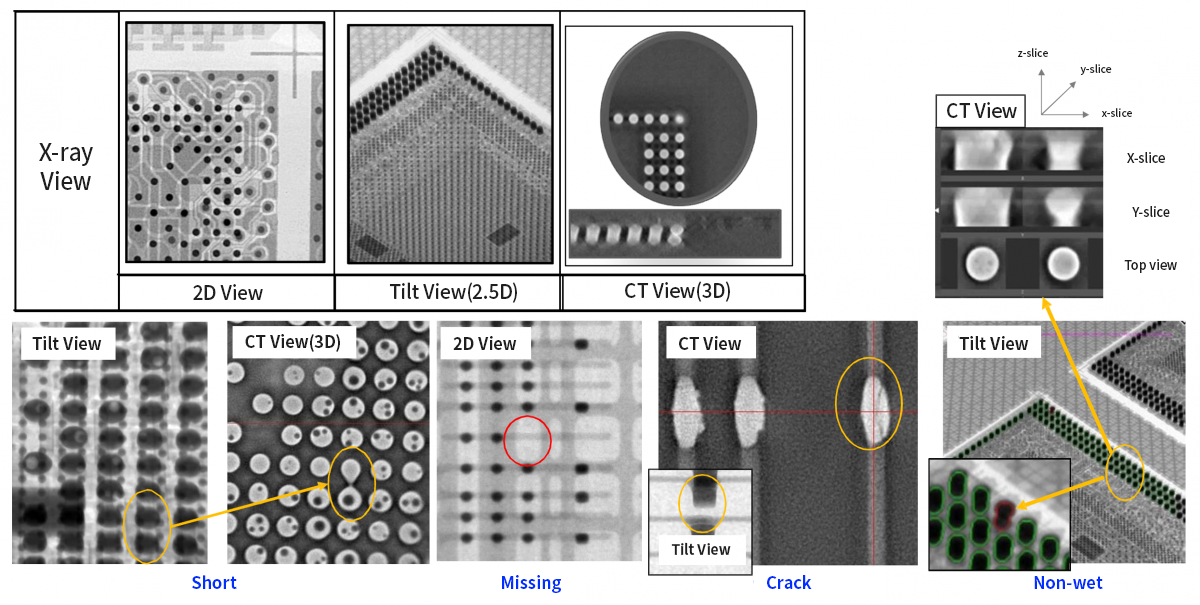

[2D, 2.5D & Oblique CT Mechanism]
300mm XY Moving and 360º Rotation by X-Ray Table
Grab 2D, 2.5D & CT Images
Make 3D Volume Rendering Images
※ Non-Destructive Inspection Mechanism
구입문의
SPEC SHEET
X-RAY TUBE 2D 3D
Jima Resolution(um) 0.25
Tube Voltage Range(kv) 100
Tube Current Range(mA) 0.2
MAX. Target Power(W) 4
Beam Angle(degrees) 140
DETECTOR
Sensing Area 145.4 X 114.9 116 x 145mm
Image Array size 1944 X 1536 2352 x 2944 pixels
Frame rate 26(1X1) 10(normal) / 35(Binning) frames/s
Pixel pitch 74.8 49.5(normal) / 99(Binning) um
Digital output 14bit 14bit
Manipulator
Size(WxDxHmm) 2700 X 2310 X 2150mm
Weight(Kg) 6000KG
Table Size (mm) (MAX/MIN) 300X300
Inspection Area (mm)
Object Size(WxDxHmm) ~300X300X1mm
Object Weight(Kg) ~1kg
XYZ Stroke(mm) 310x310x80
DETECTOR Tilt (°) 60
AXIS 9AXIS
